500 ~ 10000 RPM spinning speed programmable
Accept substrate from 5 mm to 5"
PP chamber for anti-corrosive operation.
One gas inlet port on top of the cover can fill inert gas during coating

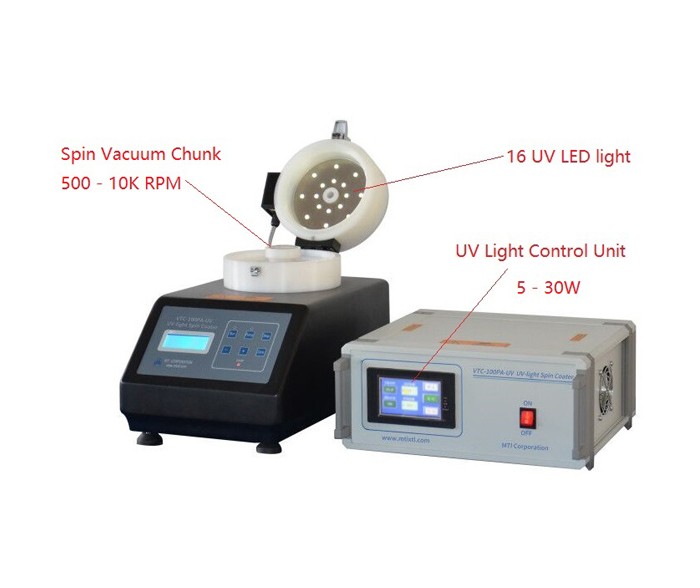

VTC-100PA is a tabletop spin coater up to 5" diameter at Max. 10000 rpm. The spin head actuator is a precision DC servo motor with accurate speed and acceleration control. The substrate can be held by vacuum (for thinner objects). The device has a user-friendly keyboard and LCD display for programming various parameters up to 12 programs, 6 segments.
| Main Features | · 500 ~ 10000 RPM spinning speed programmable · Accept substrate from 5 mm to 5" · PP chamber for anti-corrosive operation. · One gas inlet port on top of the cover can fill inert gas during coating · One 20ml Plastic Syringe is included · The safety interlock is integrated into the lid |
| Vacuum Chuck | · Chamber size: 150 mm diameter · 2 sets of PP anti-corrosive vacuum chucks with different sizes (O-ring ID Φ44mm, Φ10mm), which can hold substrate from 5 mm to 5" Dia. |
| Vacuum Pump | · One 120L/min Oilless Vacuum Pump is included · Vacuum-grade rubber pipe is included for immediate use. |
Programmable Control | · The digital control panel can store 12 programs and each program has 6 segments programmable for speeds, acceleration, and spin duration · Speed: 500 rpm - 10000 rpm programmable · Duration up to 60 seconds for each segment · Acceleration: 100 - 2000 rpm / sec adjustable · Accuracy: < 5% |
| Input Power | · AC 220V · 1000 W total for the oilless pump and spin cater · 24VDC high-speed motor |
| Gas Inlet | 6mm diameter gas inlet port allows customers to fill desired gas into the chamber, which can make coating under variable gas flow environment. |
| Liquid Injection | · Standard Package: 20ml plastic syringe with needle |
