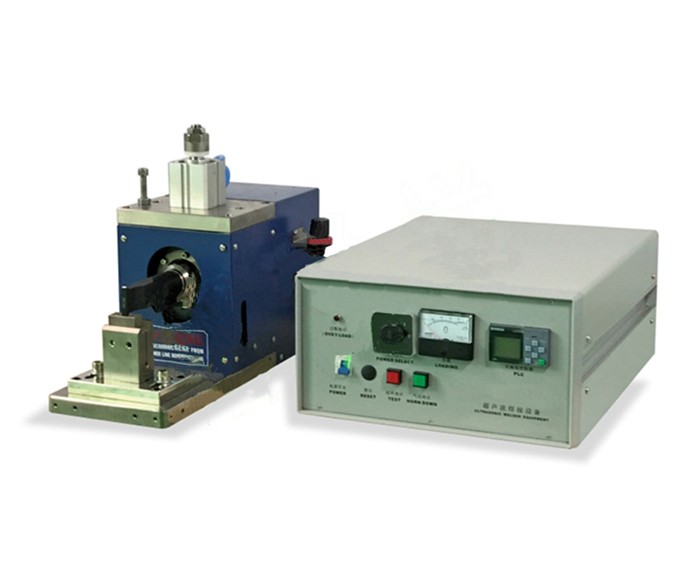

CHY-DH800 Desktop 800W 40KHz Ultrasonic Metal Welder

*All workpieces can be welded without pre processing, soldering tin, or soldering oil additives, which is economical and convenient.

*The welding head is made of wear-resistant material, with durable durability.

*The internal resistance of the solder joint is small. After welding, the conductivity is good, and its resistance coefficient is extremely low, close to zero.

*The welding time is very short, and can generally be completed within 0.01-2S seconds.

*The welding point is firm, the temperature during operation does not exceed its annealing temperature, and does not change the metallographic structure of the workpiece. Its welding strength is stronger than other methods of welding, and the welding interface is neat and clean.

*Welding costs are low, speed is fast, easy to operate, and maintenance is convenient.

*During welding, there is no spark, the operator is safe and assured, there is no smoke smell, and it will not cause air pollution.

Share:
Application

CHY-DH800 is a ultrasonic metal welder with a color touch-screen controller. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tabs onto current collectors to prepare Li-ion pouch cells in R&D laboratories.

Product parameters
Model No.CHY-DH800
Power supplyAC220V/50Hz
Working pressure0.5~0.7Mpa
Ultrasonic frequency40KHz (automatic tracking)
Power800W (adjustable)
Welding time0~1s
Welding layerWithin 15 layer
Drive typepneumatic
Dimension

Control box size: L360 × W480 × H200mm

Generator size: L200 × W460 × H270mm
