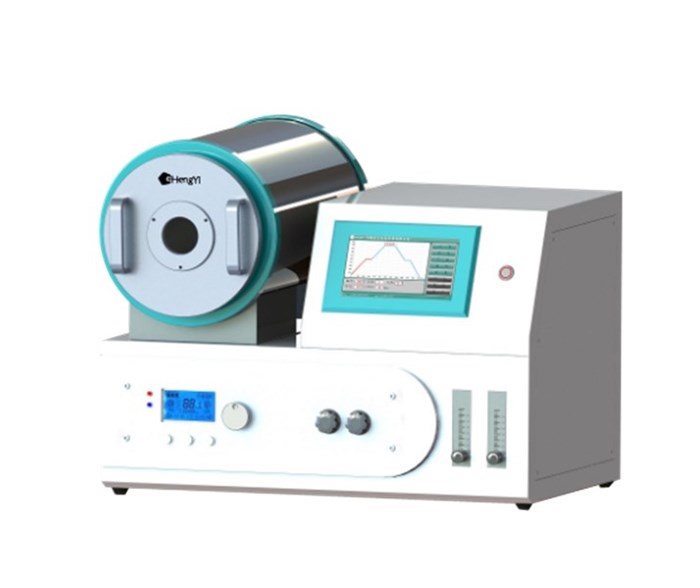

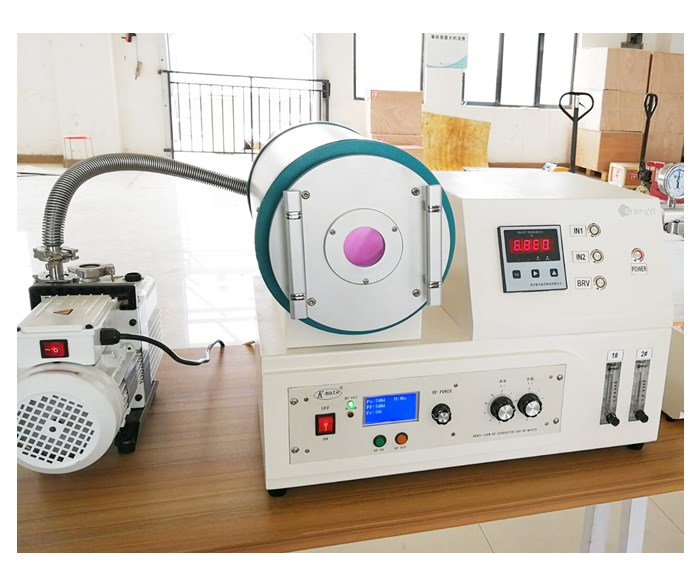

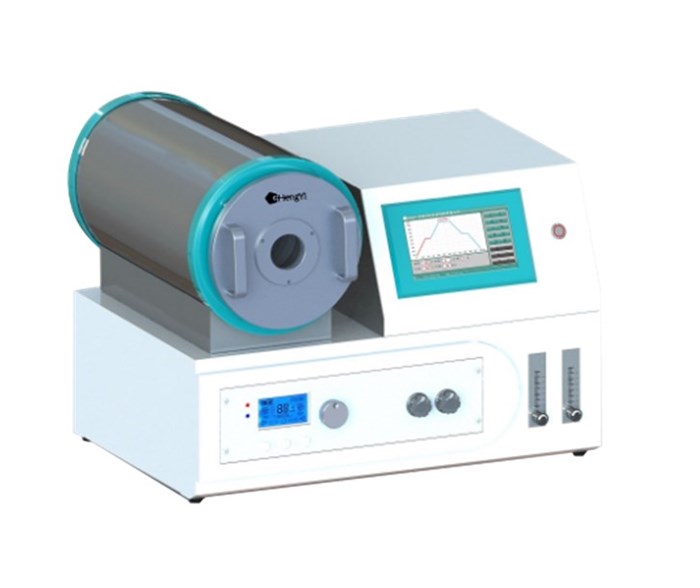

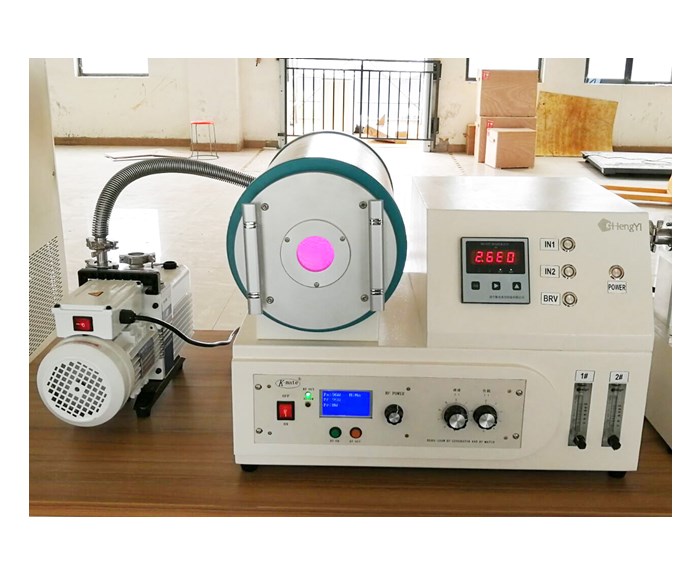

CHY-P2L 13.56MHz Plasma Cleaner with 2L capacity

1.Chamber dimension:O.D 100*270mm

2.Chamber material:Stainless steel or High Purity Quartz

3.RF power:13.56MHz

4.Plasma cleaning automatic matching

5.Made by Henan Chengyi

Share:
Application

Chengyi Vacuum Plasma Cleaner divided into two types, atmospheric and vacuum; it is widely used in semi-conductor, PCB, medical diagnosis, elastomer industry, optical industry,etc.

Our plasma cleaner have two type: 40KHz and13.56Mhz, and 2.45GHz RF Power for optional. Our standard chamber capacity has 2L, 5L,10L which used in laboratory. Basing on different industry, we can do customized chamber dimension with requested RF power.


Product parameters
Model No.CHY-P2L
Product NamePlasma Cleaner
DisplayLCD touch controller
Working voltageAC 220V, 50Hz
RF Frequency13.56MHz
Coupled modeCondenser coupling, without pollute sample
RF power300 w
RF offset< 0.2KHz
Characteristic impedance50Ω, automatic matching
Vacuum degree10-100Pa, equipped with a mechanical pump
Gas speedTwo way Float Flow Gas Control10-100ml/min, adjustable
ControlPLC Touch Panel Program control
Inner chamber size

Chamber Dimension Φ 100*270mm

Capacity: 2L

Pressure GaugeA simple digital pressure gauge is equipped for reading
Cooling wayForced cooling
Outer dimension440*390*200mm
Gross weight45 kg
