1.304 stainless steel liner, clean and easy to clean
2.Max Temperature 300 degree
3.Explosion proof electrical cabinet, explosion-proof protective tube, panel controller explosion-proof

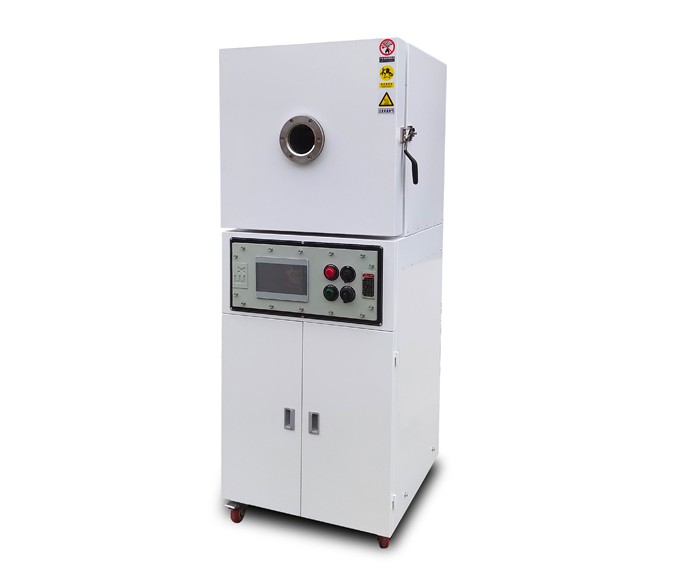

Explosion proof high-temperature vacuum drying oven is a box type drying equipment that performs annual baking of dried materials under negative pressure conditions.The GW100B's max heating temperature upto 300℃ with 450*500*450mm chamber size.
| Model No. | CHY-GW125B |
| Temperature range | RT+10~300℃ |
| Chamber size | 450*500*450mm |
| Sample tray | 2 piece |
| Limited vacuum | 100kpa~0.1KPa |
| Temperature resolution | ±0.1℃ |
| Temperature fluctuation | ±0.3℃ |
| N2 flow speed | 0~10L/min |
| Vacuum pump | Explosion proof vacuum oil pump |
| Power supply | AC380V/50Hz; 4.75KW |
| Dimension | 650*750*1550mm |
