1.304 stainless steel liner, clean and easy to clean
2.PT100 Pt thermcouple, high temperature accuracy
3.Max Temperature 400 degree
4.Overtemperature alarm cuts off heating power supply, leakage protection, broken resistance wire alarm, phase loss protection, grounding and other protections

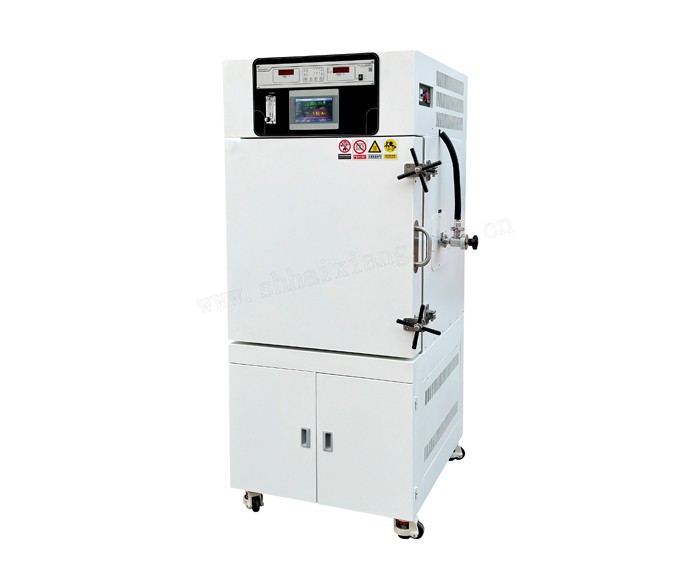

The High Temperature vacuum Drying box can simulate the hot environment of the vacuum space, conduct thermal vacuum tests on the test pieces, and effectively control, monitor, and record the temperature of the test pieces in the vacuum space, providing necessary conditions for the testing of related aerospace products. During simulation experiments, the specimens are often in working condition and their working parameters and environmental parameters are measured.
Model No. | CHY-125DZR |
Temperature range | RT+10~400℃ |
Chamber size | 500*500*500mm |
Sample tray | 2 piece |
Limited vacuum | 1*10^-4 Pa |
Temperature resolution | ±0.1℃ |
Temperature fluctuation | ±0.5℃ |
Heating speed | RT~400℃/90min |
Cooling method | 10L water cooling |
N2 flow speed | 0~100L/min |
Temperature sensor | K type thermcouple |
Power supply | AC380V/50Hz; 5.25KW |
Dimension | 970*1010*1860mm |
