  • HX-DZF255 Hot Cold Vacuum Oven Temp Range -70~120 degree

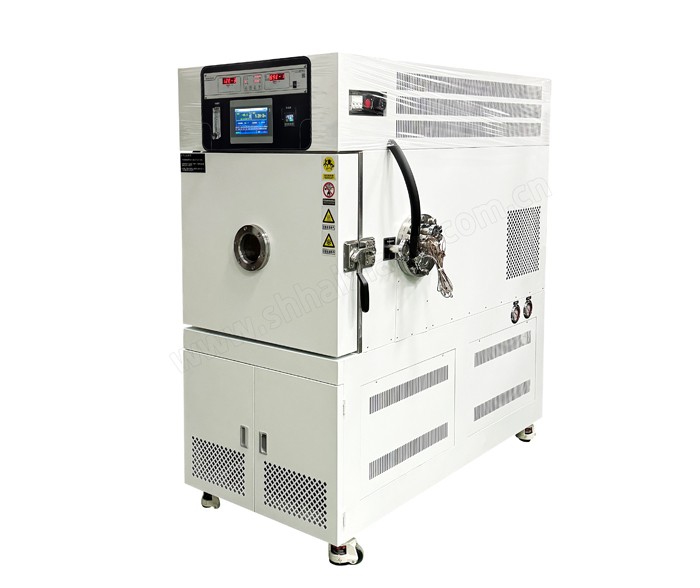

HX-DZF255 Hot Cold Vacuum Oven Temp Range -70~120 degree

1.304 stainless steel liner, clean and easy to clean

2. It has RS232 or RS485 communication interfaces and can be connected to a computer

3.PT100 Pt thermcouple, high temperature accuracy

4.Overtemperature alarm cuts off heating power supply, leakage protection, broken resistance wire alarm, phase loss protection, grounding and other protections


Share:
Application

The cold and hot vacuum box can simulate the cold and hot environment of the vacuum space, conduct thermal vacuum tests on the test pieces, and effectively control, monitor, and record the temperature of the test pieces in the vacuum space, providing necessary conditions for the testing of related aerospace products. During simulation experiments, the specimens are often in working condition and their working parameters and environmental parameters are measured.

Product parameters


Model No.HX-DZF255
Temperature range-70~120℃
Chamber size600*600*700mm
Sample tray2 piece
Limited vacuum10E4Pa
Temperature resolution±0.1
Temperature fluctuation±0.2
Heating/Cooling speed
1.0~3℃/min
Cooling methodcompressor cascade refrigeration
N2 flow speed0~100L/min
Temperature sensorPT100
Power supply
AC380V/50Hz; 11KW
Dimension1300*110*1800mm
