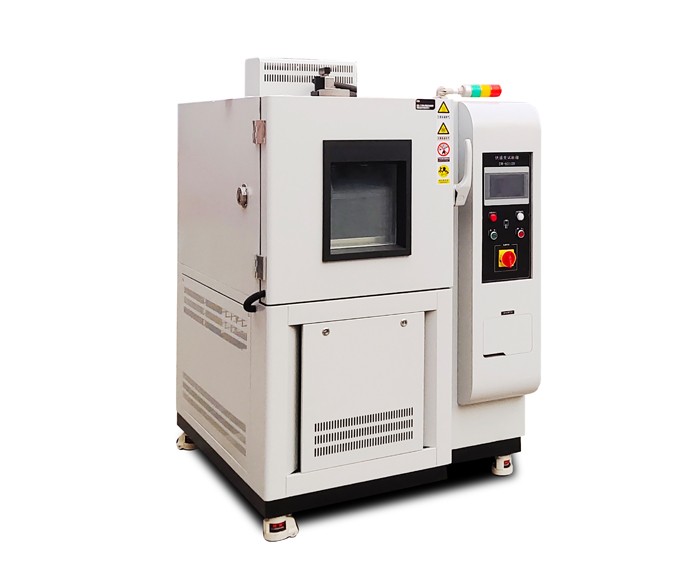

GD-4000 -40-150 degree High Low Temperature Testing Chamber

1.Stainless steel box (SUS304) mirror inner liner

2.Equipped with a test hole with a diameter of 100mm

3.7-inch programmable color touch controller

4.100 sets of programs, 1000 segments, 999 loop steps

5.RS-232 or RS-485 communication interface optional

Inquire Now Next Product

Application

GD-4000 series rapid temperature change test box, with linear temperature rise and fall, high efficiency, and good energy saving. This device is suitable for schools, factories, military industries, research institutions, laboratories, universities, and other units to test the performance indicators, storage, and adaptability of various electronic components in high temperature, low temperature, or alternating high and low temperature environments.

Product parameters

Model No.	GD-4005	GD-4010	GD-4015	GD-4025	GD-4040	GD-4050	GD-4080	GD-4100
Chamber size	360350 400	500400 500	500500 600	600500 750	800600 850	800700 900	1000800 1000	10001000 1000
Overall size	830880 1515	980920 1615	9801070 1700	0801050 1860	2801100 2000	12801200 2050	14801300 2150	14801500 2150
Temperature range	LT(0℃、-20℃、-40℃、50℃、60℃、-70℃、80℃)~HT(85℃、130℃、150℃)
Heating rate	3.0-5.0℃min
Cooling rate	0.7-1.5℃min
Temperature fluctuation	±0.5℃
Temperatureuniform	±2.0℃
Temperature accuracy	0.1℃
Temperature deviation	±1.0℃
Chamber material	SUS304 STAINLESS STEEL
Power supply	220V/380V50HZ
