50-100g/hr milling capacity

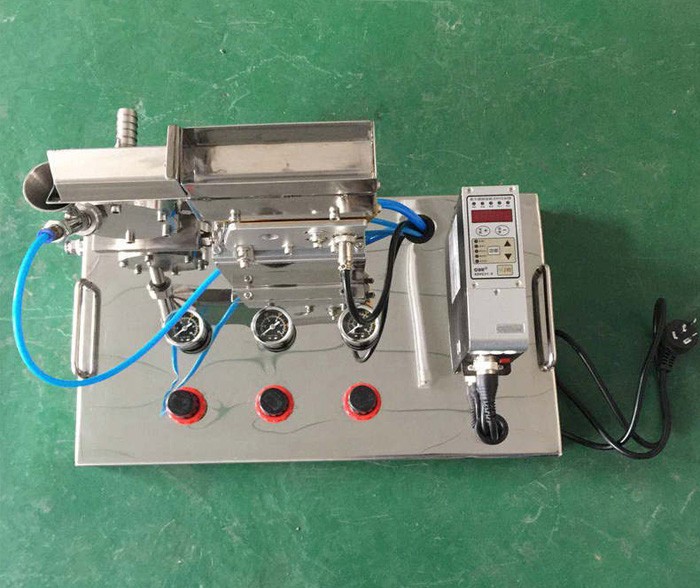

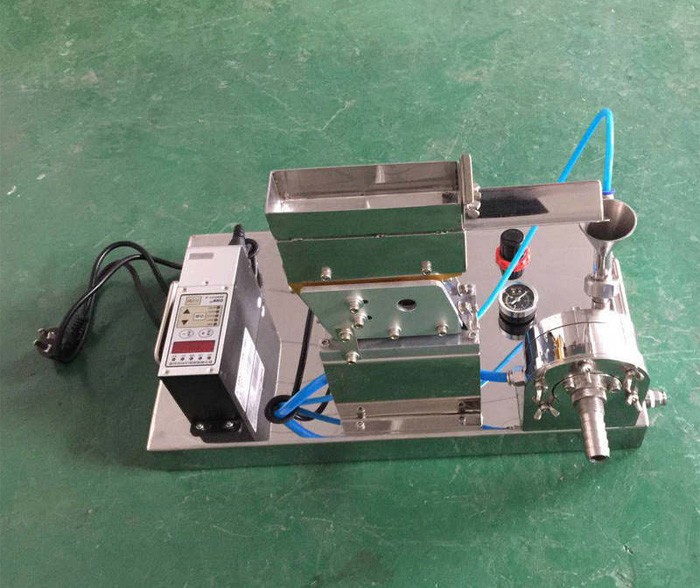

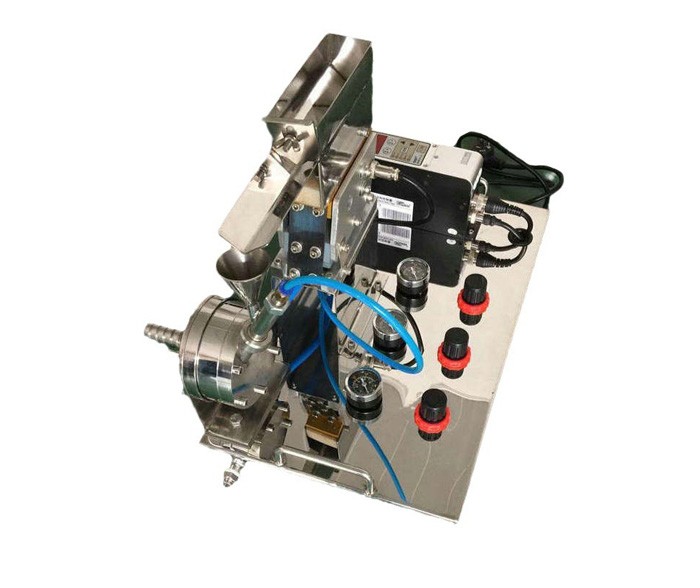

MSK-BPM-50 is a lab-scale jet mill for materials with various hardness and properties. It grinds materials such as ceramic, magnet, ferrite and metallic alloy into micron-scale powder (2-5 microns) with the output rate of 50 - 100g/hr.
Model No. | MSK-BPM-50 |
| Required Air Pressure | * Recommended 0.6 - 1.0 Mpa * Recommended gas consumption rate: ~ 0.6 m3/ minute |
| Particle | * Input: 100 - 200 mesh * Output: 2 - 15 micron, 50-100g/hr * The output particle size is depended on material hardness and input particle size. For larger input particles may need 3-5times milling to reach the smallest size. |
| Particle collecting | One output particle collecting bag is included for immediate use |
| Mill Liner | High purity fully sintered alumina |
| Powder Feeder | * Automatic powder feeder controlled by vibration frequency * Frequency: 40-400Hz adjustable |
| Dimensions | 510 mm(L) x 310 mm(W) x 440 mm(H) |
| Working Power | 240V AC 50/60Hz ,60W |
