1.Small size, light weight,No oil linkage, easy to carry.
2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.
Compound ceramic samples in materials/chemistry research laboratory
Catalytic Reaction
Battery Energy
Cement Ore

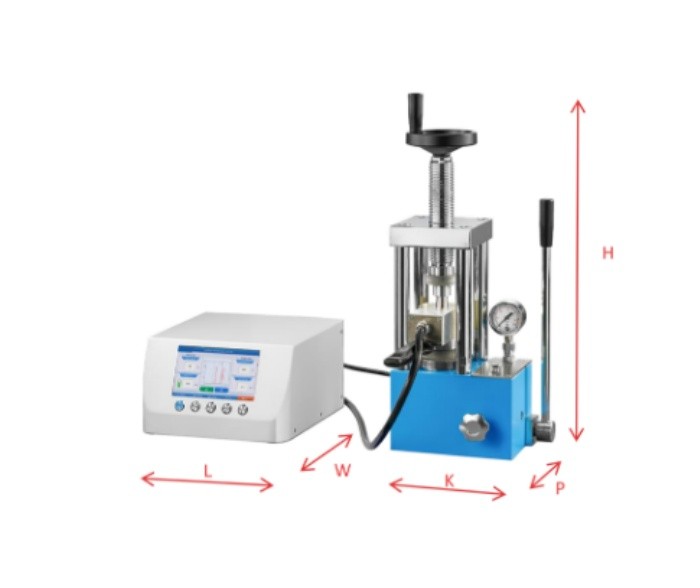

| Product Name | 24 Ton Laboratory Heated Press | |
| Type | CHY-600A | |
| Pressure range | 0-24T(0-34MPa) | |
| Piston diameter | Chrome plated cylinder 95mm | |
| Overall structure | Unsealed connection of equipment to reduce leakage | |
| Pressure gauge | Pressure pressure double scale display | |
| Heating range | Rm~300℃ | |
| Temperature accuracy | 0.1℃ | |
| Cooling method | Water cooling | |
| Mold Inner Diameter | ≤20mm,or as customized | |
| Machine dimension | 245*175*415mm | |
| Power Supply | AC220V 300W | |
| Gross Weight | 48Kg | |
Pressure Conversion
| Real Pressure | System Pressure | Pressure Gauge |
| 1Ton | 1.41MPa |  |
| 2Ton | 2.82MPa | |
| 3Ton | 4.23MPa | |
| 5Ton | 7.06MPa | |
| 8Ton | 11.3MPa | |
| 10Ton | 14.1MPa | |
| 15Ton | 21.2MPa | |
| 20Ton | 28.3MPa | |
| 24Ton | 34MPa |
