  • CHY-40S Laboratory 40T Electric Pressing Machine

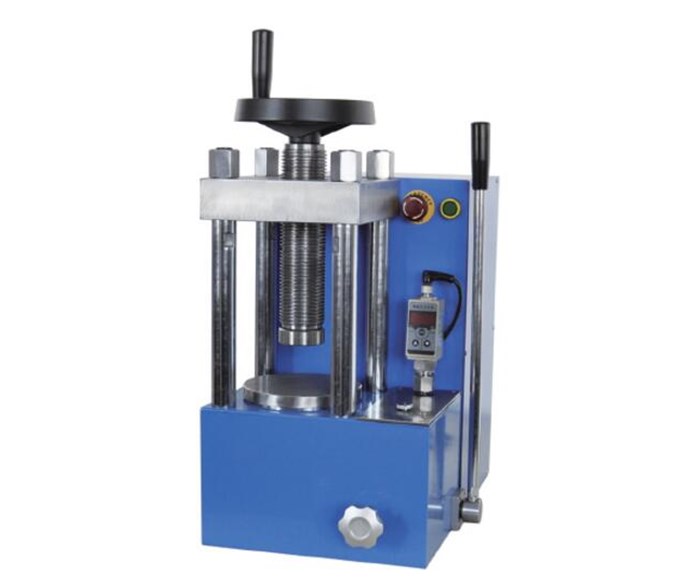

CHY-40S Laboratory 40T Electric Pressing Machine

Laboratory press is designed for preparing compound ceramic samples in materials/chemistry research laboratories. The press has a built-in hydraulic pump with auto return function for quick die removal & sample retrieval.

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application

1.Compound ceramic samples in materials/chemistry research laboratory

2.Catalytic Reaction

3.Battery Energy

4.Cement Ore

Product parameters


Product Name40T Electric Pressing Machine
TypeCHY-40S
Pressure range0-40T(0-30MPa)
Piston diameterChrome plated cylinder 130mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugeDigital Gauge
Pressing methodElectric/Manually
Maximum piston stroke50mm(T)
Pressure stability≤1MPA/10Min
Worktable diameter140mm(O.D)
Number of columnsFour Column
Column spacing115*185mm
Protective CoverNot Have
Over dimension295*450*500mm
Weight92kg
Power supplyAC220V 50Hz

Pressure Conversion


Real PressureSystem PressurePressure Gauge
1Ton0.75MPa CHY-20S Laboratory 20T Electric Manually Hydraulic Press with Digital Gauge
3Ton2.2MPa
5Ton3.7MPa
10Ton7.5MPa
12Ton9MPa
15Ton11.3MPa
20Ton15MPa
30Ton22.5MPa
40Ton30MPa
