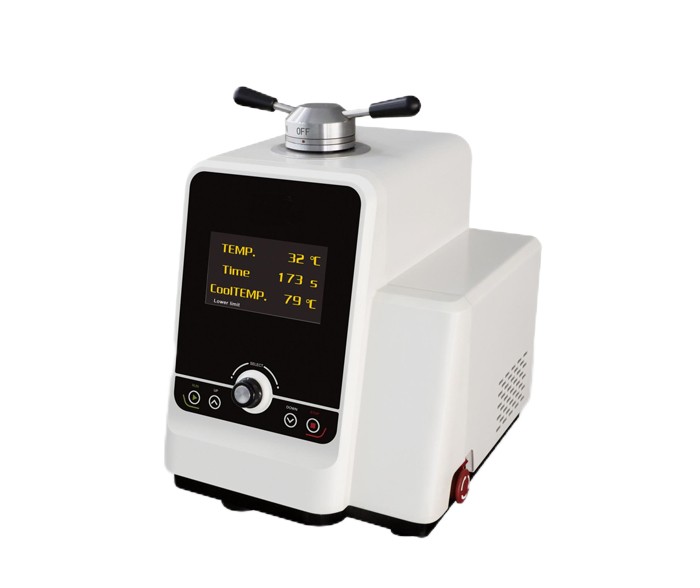

ZXQ-2 is suitable for tiny or irregular metallorgraphic, lithofacies specimen to be mouted so that the sample will be cut or grinded and polished, and then metallography, spectral measurement or hardness testing. This, machine adopts 7’’big LCD screen display, which has the function of real-time temperature, holding time, cooling temperature.
| Model | ZXQ-2 |
| Sample diameter | Φ22mm, φ30mm, φ45mm |
| Heating power | 450~1000w |
| Heating Range | 100-200℃ |
| Cooling Range | 20℃~90℃ |
| Holding time Range | 0-999(s) |
| Input Voltage | Single-phase 220V 50HZ |
| Cooling mode | Water /slow Cooling |
| Dimension | 350mm×400mm×465mm |
| Net Weight | 48kg |
