  • SYJ-150 Digital Low Speed Diamond Saw with 4inch Cutting Blades

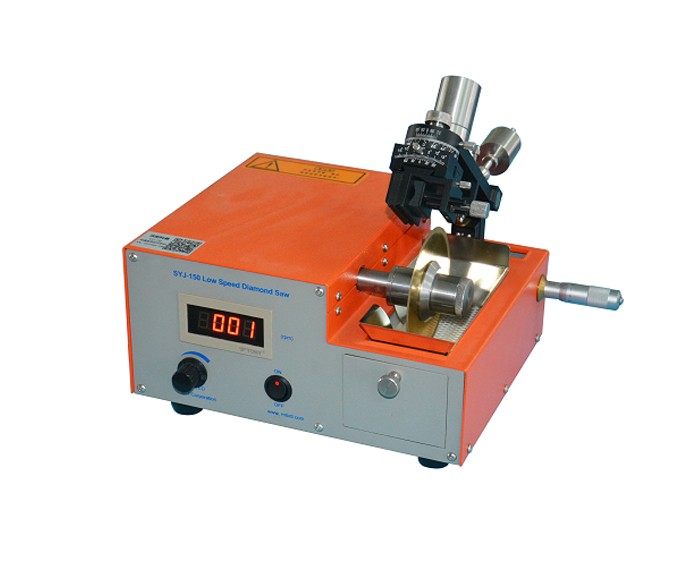

SYJ-150 Digital Low Speed Diamond Saw with 4inch Cutting Blades

4 inch diamond cutting saw

Share:
Application

SYJ-150 is a low-speed diamond saw, which equips with an advanced digital micrometer and a digital speed display controller, it is the perfect tool for cutting/dicing/slicing all kinds of materials up to 32.5 mm thickness, especially for brittle crystals, ceramics, TEM samples cutting

Product parameters
Voltage and Power
  • Variable 0-600 rpm with LED digital display


Cutting Width & Depth

Three blades are included for cutting various materials

  • SiC blade: 4" x 0.35 mm x 0.5" Arbor for cutting nonferrous metal materials, such as superalloys

  • Al2O3 blade: 4" x 0.35 mm x 0.5" Arbor for cutting ferrous metal materials, such as iron and steel

  • Full sintered diamond blade: 4" x 0.35 mm x 0.5" arbor for cutting crystal, ceramic, and plastic material

Sample Holder & Mini-vise

  • Two angles adjustable sample holder is included, please click the picture below for the details (max. opening 26mm)

  • One Mini-vise is included, which can be easily adapted onto the sample holder to clamp rod shape specimens with a diameter up to 1'' max.

Package Dimensions
19"(L) x 15"(W) x 15"(H)
