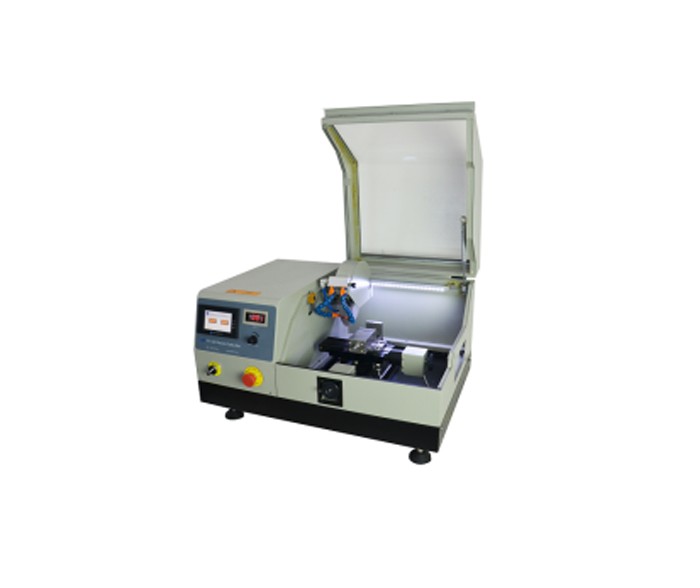

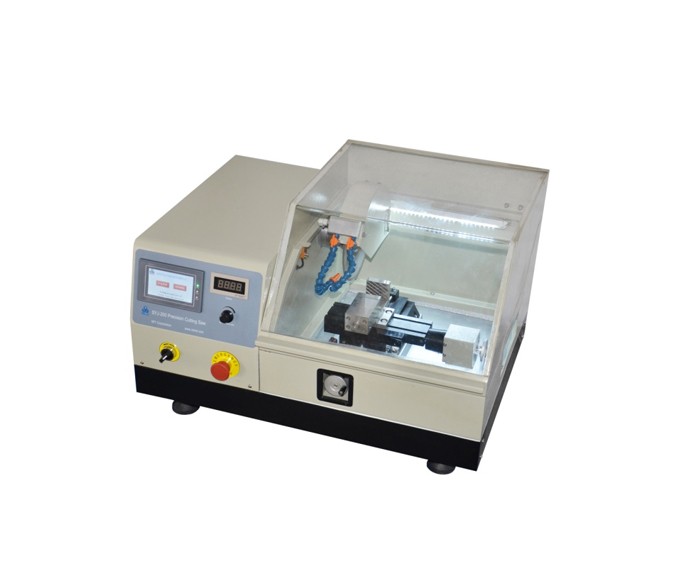

SYJ-200 Automatic Section Saw (8inch Blade) with complete accessories

**1 HP high torque DC motor

**1" Dia spindle and 2" flange for 6 - 8" Dia diamond blades

**Variable blade speed: 300-3500 RPM with screen touch control panel and digital display

**The quick clamp is included makes the sample mount easy and fast.

**Automatic/manual control X and Y, co-axial motion via touch screen digital panel

**Programmable Y and X-axis advancement via LCD panel to achieve automatic cutting with 0.01 mm precision

**The X-axis is for cut feeding which has a max travel distance of 80 mm and adjustable speed from 1.0 mm/ minute to 20 mm/minute

**Max. cutting depth (or sample height): 65mm**The Y-axis is for controlling the thickness of the slices, which can be programmed up to 100 mm distance**Max. Opening of the Vise: 54mm

• One 8" Dia x 0.025" T x 1" arbor sintered diamond blade for cutting ceramic sample

• One 8" Dia x 0.04" T x1.26" arbor Alumina Blade for cutting ferrous metal and steel

• One 8" Dia x 0.04" T x1.26" arbor SiC Blade for cutting non-ferrous metal such as Ti, Ni, and Ta
